Seperation Stablization
To prolong surface life and stabilize the foundation Stabilization woven geo-textiles provide a rugged separation layer between aggregate and sub-grade

Erosion Control Wovens

Call

410-861-8302

For All Your Erosion Control

Needs

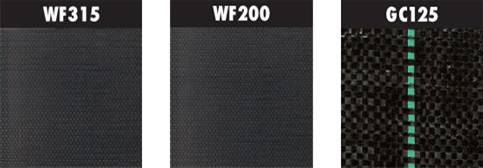

USES

WF315

WF200

GC125

YES

Ground Cover

YES

YES

Separation

YES

YES

Stabilization

 * Sediment/Erosion Control Use Silt Fence *

Erosion Control Non-Wovens

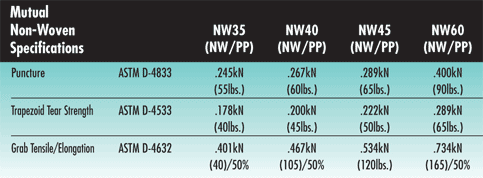

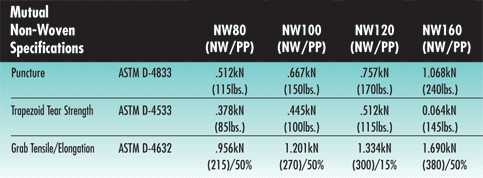

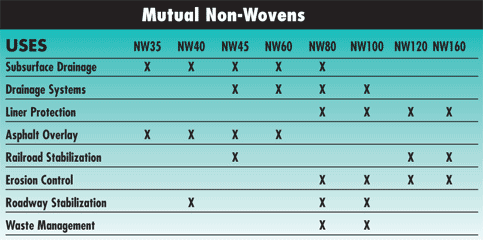

Non-Wovens
EROSION CONTROL’S non-wovens are available in cut rolls. NW35 is in stock in the following sizes: 7-1/2 x 300¹, 6¹ x 300¹, 5¹ x 300¹, 4¹ x 300¹, 3¹ x 300¹, 2¹ x 360¹, 1¹ x 300¹. All other non-wovens available in 12-1/2¹ x 360¹, and 15¹ x 300¹.

Subsurface Drainage
Non-woven geo-textiles used as a filter, allow subsurface water to pass into drainage core while preventing soil from clogging the system.

Liner Protection
Non-woven geo-textiles protect liners from damage by sharp objects, elevating puncture impact and abrasion resistance.

Drainage Systems
When placed in contact with a Geonet or drainage stone non-woven geo-textiles can filter soil and waste while allowing water and waste to pass.

Asphalt Overlay
Absorb asphalt tack to form moisture barrier that retards reflective cracking.

Roadway & Railroad Stabilization
Putting a non-woven geo-textile directly on a soft saturated sub-grade extends road and rail life by preventing aggregate and ballast from intermixing with soil.

Hard Armor Erosion Control
Non-woven geo-textiles can help relieve hydrostatic pressure beneath hard armour and prevent subsurface soils from migrating through the erosion control system.

Waste Management
Non-woven geo-textiles are used to separate layers and to protect liners in the landfills.

Text Box: CALL TOLL FREE 866-744-5001

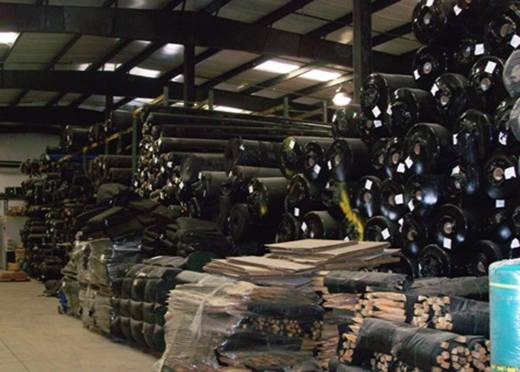

Your Complete Line of Geo-textiles
Text Box: 2601 EMORY ROAD, BUILDING # 8, FINKSBURG, MARYLAND, 21048

Geo-textiles

EROSION CONTROL

Geotextile, Construction & Safety products

Text Box: EROSION CONTROL NON-WOVEN
Text Box: Our
Text Box: Our

GC125 Ground Cover
Erosion Control’s 125 weight ground cover has convenient planting guide lines placed every 12 inches for even rows. Available: 3’ x 300’, 6’ x 300’, 12’ x 300’ rolls.

Fabric Pins
Part Number 17606
Ideal for fastening landscape fabric and ground cover. Available in 12” and 18” lengths, 100 per box..

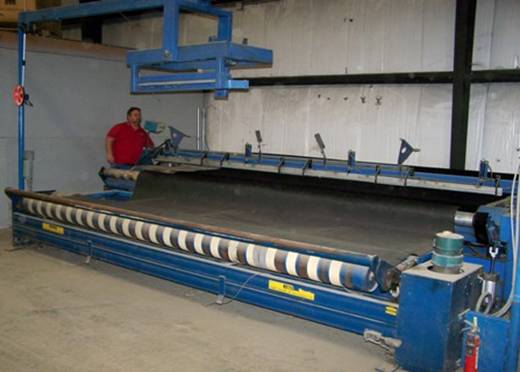

CUSTOM CUT ON SITE

WE WILL

CUSTOM CUT

FABRIC

Erosion Control

Woven Specs

Standard

GC125

Ground Cover

WF200

Geo-Textile

WF315

Geo-Textile

Grab Tensile Strength

ASTM D-4632

 125 lbs.

370/250 lbs.

200 lbs.

Grab Elongation

ASTM D-4632

15%

15%

15%

Trapezoid Tear

ASTM D-4533

 70 lbs.

100/250 lbs.

75 lbs.

Puncture

ASTM D-4833

68 lbs.

135 lbs.

100 lbs.

Mullen Burst

ASTM D-3786

291 PSI

480 PSI

400 PSI

Permitivity

ASTM D-4491

.07 SEC

.23 SEC

.07 SEC

A.O.S.

ASTM D-4751

40 US Sieve

70 US Sieve

40 US Sieve

U.V. Resistance (500 hr)

ASTM D-4355

90%

90%

90%
